    EN 13157手动起重机械 CE认证详解
    发表时间:2019-08-06     阅读次数:     字体:【

    手动起重机械 CE标准

    EN 13157: 2004+ A1: 2009

    Cranes — Safety — Hand powered cranes

    起重机-安全-手动起重机

    适用产品:

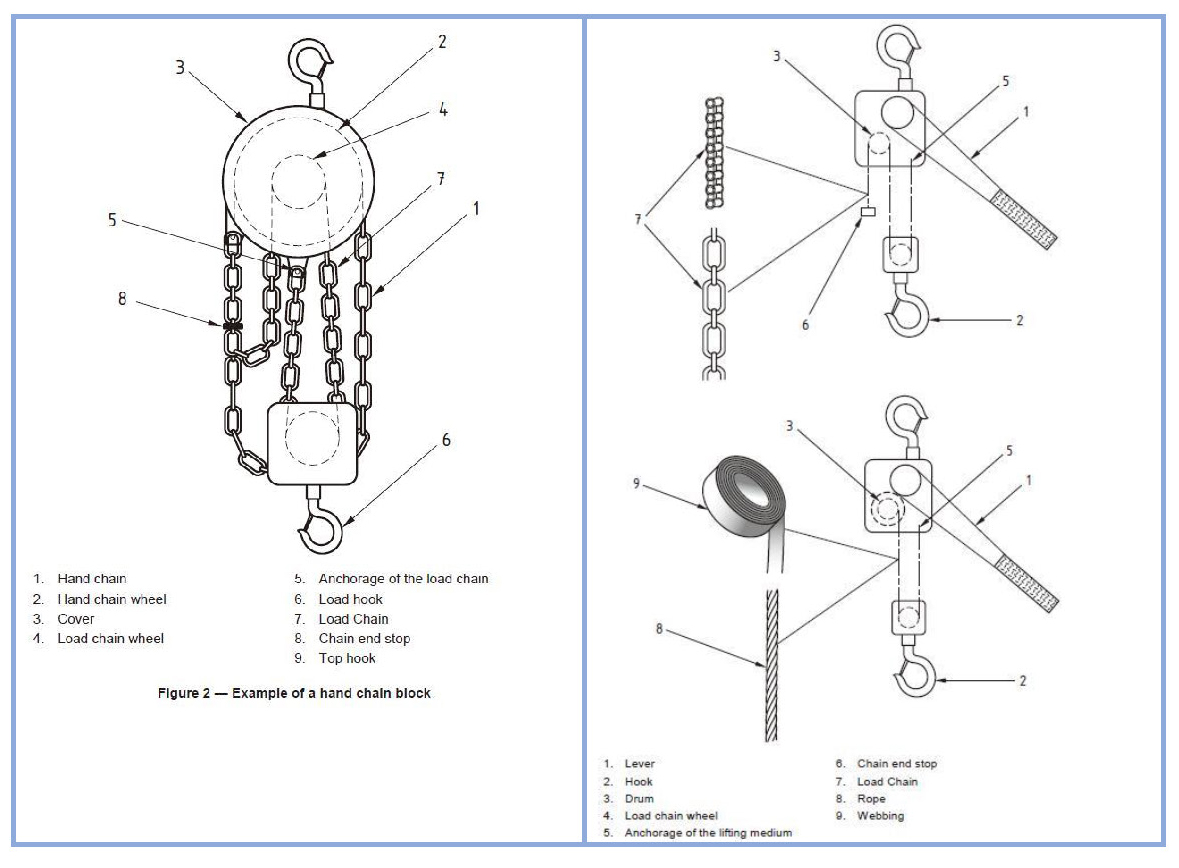

    - Hand chain blocks; 手拉葫芦

    - Lever hoists; 环链手扳葫芦

    - Jaw winches; 下巴绞车

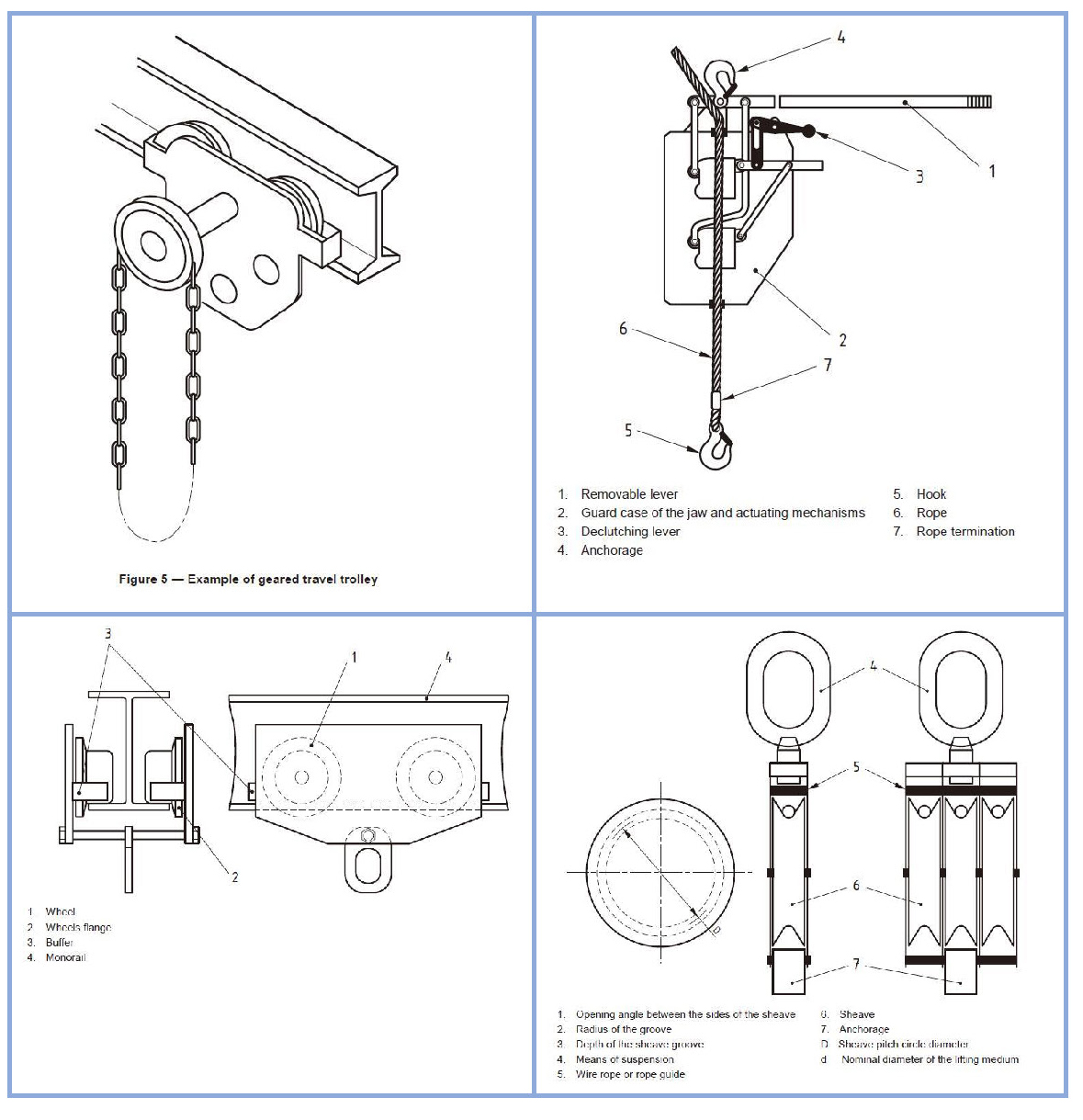

    - Hand powered trolleys supporting lifting machines; 配套起重机械的手动手推车;

    - Drum winches; 滚筒绞车

    - Pulley blocks and deflection pulley. 滑轮组和偏转轮


    机械CE认证风险评估清单

    1 Mechanical hazards机械危险

    1.1 From machine parts or workpieces caused for example, by their:

    例如由机器零件或工件引起的

    1.1.1 Shape形状

    1.1.3 Mass and stability (potential energy of elements that can move under the effect of gravity)

    质量和稳定性(在重力作用下可以运动的元素的势能)

    1.1.5 Inadequacy of mechanical strength机械强度不足

    1.3 Elementary hazards: 基本的危险:

    1.3.1 Crushing hazards挤压风险

    1.3.2 Shearing hazard剪切风险

    1.3.3 Cutting or severing hazard切割或切断危险

    1.3.4 Entanglement hazard缠绕危险

    1.3.5 Drawing-in or trapping hazard吸入或卷入危险

    1.3.6 Impact hazard冲击危险

    1.3.7 Puncture hazard刺伤性危险

    8 Hazards generated by neglecting ergonomic principles in machine design such as hazards caused by: 忽视人机工程学原理在机器设计中产生的危害,如:

    8.1 Unhealthy postures or excessive efforts不健康的姿势或过度的努力

    8.6 Human errors人为错误(

    15 Assembly errors装配误差

    17 Fall or ejection of objects物体的落下或弹射

    18 Loss of stability/overturning of machine机器失去稳定性/倾覆

    20 Hazards relating to movement: 与运动有关的危险:

    20.6 Inadequate ability of machine to be slowed down, stopped and immobilized

    机器减速、停止和固定的能力不足

    21 Hazards due to work position (including operator’s position) on the machine:

    机器上工作位置(包括操作者位置)造成的危害:

    21.4 Mechanical hazards at work position- contact with wheels

    工作场所的机械危害-与车轮接触

    23 Resulting from the handling of the machine (lack of stability)

    由于机器的操作(不稳定)

    26 Inadequate instructions for driver/operator对司机/操作员的说明不充分

    27 Mechanical hazards and dangerous events: 机械危害及危险事件:

    27.1 Resulting from falling load, collisions, swinging of machine caused by

    由于负载下降、碰撞、机器摆动而引起的

    Uncontrolled loading – over loading 不受控制的加载-超载

    Uncontrolled amplitude of the movement 不受控制的运动幅度

    Unexpected/unintended movement of the loads 负载的意外移动

    Inadequate holding devices 手持设备不足

    Collision of more than one machine多台机器的碰撞

    27.3 Resulting from a derailment由于脱轨而引起的

    27.4 Resulting from inadequate mechanical strength of parts由于零件的机械强度不足而引起的

    27.5 Resulting from inadequate design of pulleys, drums由于滑轮、滚筒设计不合理

    27.6 Resulting from inadequate selection/integration into the machine for chains, cables, lifting accessories由于链条、电缆、起重附件的选型/安装不到位

    27.7 Resulting from descent of load by friction brakes因摩擦制动器使负载下降而引起的

    27.8 Resulting from abnormal assembly/test/use/maintenance conditions

    由于装配/测试/使用/维护条件异常造成的

    29 Hazards generated by neglecting ergonomic principles忽视人体工程学原理造成的危害

    29.1 Inadequate visibility from the operator position操作员位置的能见度不足
